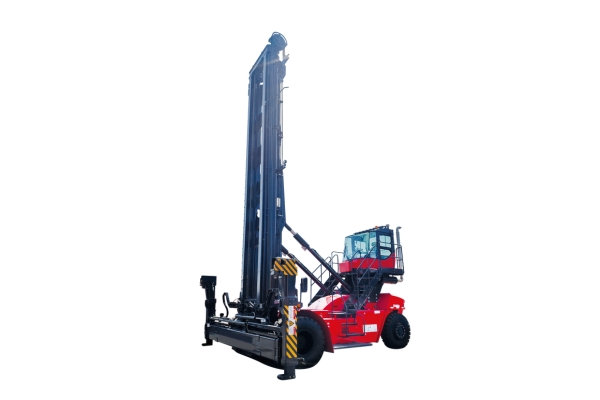

The SOCMA ECH100C8 Empty Container Handler is engineered for efficient handling of empty 20ft and 40ft containers in depots and ports. With a 10-ton lifting capacity, a Cummins QSB6.7-C220 engine, and an advanced transmission system, it ensures robust performance and reliability.
The SOCMA ECH100C8 Empty Container Handler is designed to manage empty 20ft and 40ft containers in depots and ports, featuring a 10-ton maximum lifting capacity and a Cummins QSB6.7-C220 engine delivering 164 kW at 2300 rpm. Its enhanced frame and hydraulics support efficient stacking and movement, with an optimized lifting height.
Equipped with a German ZF 3WG211 transmission with 3 forward and 3 reverse gears, the ECH100C8 offers smooth auto-shift performance. The German Kessler D81PL488-NLB wide-type drive axle and Italian OMC steer axle provide durability and stability under the increased load capacity.
The operator cab is designed for enhanced comfort and visibility, with ergonomic controls and a wider field of view. This handler leverages SOCMA’s expertise in heavy machinery to deliver high productivity in demanding container handling operations.
Max Lift Capacity: 10 tons
Max Lift Height: 6700 mm (estimated for 5-high stacking)
Max Lift Speed (Laden): 0.55 m/s (estimated)
Max Traveling Speed (Laden): 26 km/h (estimated)
Min Turning Radius: 5800 mm (estimated)
Gradeability (Laden): 20% (estimated)
Min Ground Clearance: 300 mm (estimated)
Overall Width: 2600 mm (estimated)
Overall Length: 6200 mm (estimated)
Overall Height: 4700 mm (estimated)
Tire Size: 14.00-24
Engine: Cummins QSB6.7-C220
Engine Power: 164 kW at 2300 rpm
Transmission: German ZF 3WG211 (3/3 gears auto-shift)
Drive Axle: German Kessler D81PL488-NLB
Steer Axle: Italian OMC
Operating Weight: 27000 kg (estimated)
