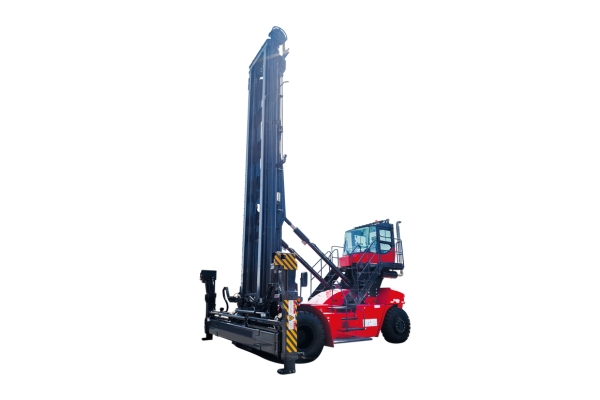

The SOCMA ECH90C7 Empty Container Handler is engineered for efficient handling of empty 20ft and 40ft containers in depots and ports. With a 9-ton lifting capacity, a Cummins QSB6.7-C220 engine, and advanced transmission, it ensures robust performance and reliability.
The SOCMA ECH90C7 Empty Container Handler is designed to manage empty 20ft and 40ft containers in depots and ports, featuring a 9-ton maximum lifting capacity and a Cummins QSB6.7-C220 engine delivering 164 kW at 2300 rpm. Its robust frame and advanced hydraulics ensure efficient stacking and movement.
Equipped with a German ZF 3WG211 transmission with 3 forward and 3 reverse gears, the ECH90C7 offers smooth auto-shift performance. The German Kessler D81PL488-NLB wide-type drive axle and Italian OMC steer axle provide durability and stability under heavy loads.
The operator cab is designed for comfort and visibility, with ergonomic controls and a wide field of view. This handler combines SOCMA’s expertise in heavy machinery to deliver high productivity in container handling operations.
Max Lift Capacity: 9 tons
Max Lift Height: 6100 mm (estimated for 4-high stacking)
Max Lift Speed (Laden): 0.5 m/s (estimated)
Max Traveling Speed (Laden): 25 km/h (estimated)
Min Turning Radius: 5500 mm (estimated)
Gradeability (Laden): 20% (estimated)
Min Ground Clearance: 300 mm (estimated)
Overall Width: 2500 mm (estimated)
Overall Length: 6000 mm (estimated)
Overall Height: 4500 mm (estimated)
Tire Size: 14.00-24
Engine: Cummins QSB6.7-C220
Engine Power: 164 kW at 2300 rpm
Transmission: German ZF 3WG211 (3/3 gears auto-shift)
Drive Axle: German Kessler D81PL488-NLB
Steer Axle: Italian OMC
Operating Weight: 25000 kg (estimated)
